Butterfly Valves Export | Wafer & Double Flange Types at Best Prices
- Butterfly valves are essential components in water supply, wastewater, industrial, and irrigation systems due to their compact design, durability, and cost-effectiveness.
- We supply two main types: Wafer Type (DN50–200, PN6–16) and Double Flange Type (DN100–3000, PN6–40), both designed for on/off service up to 70°C.
- Each valve is manufactured under strict DIN, ISO, and ANSI standards, with epoxy coatings certified for potable water use.
- Wafer type valves are lightweight, easy to install, and ideal for small to medium pipelines, while double flange valves are heavy-duty and suited for large-scale, high-pressure projects.
- Both models are competitively priced for export markets, with spare parts availability, actuator options, and long-term reliability.
$1.00 $1.00 / Pack
Special Shipping Offer
Reliable and efficient delivery
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Become a Vendor?Register now
Export Catalog for Butterfly Valves
Butterfly valves are widely used in water distribution networks, industrial installations, wastewater treatment plants, and irrigation systems. Their compact design, reliability, and cost-effectiveness make them an excellent choice for controlling and isolating fluid flow.
We offer two major types of butterfly valves for export at competitive international prices:
- Butterfly Valve Wafer Type (شیر پروانهای ویفری)
- Butterfly Valve Double Flange Type (شیر پروانهای فلنجدار)
Both products are designed and manufactured under strict compliance with DIN, ISO, and ANSI standards, ensuring long service life, easy maintenance, and safe operation in different water supply applications worldwide.

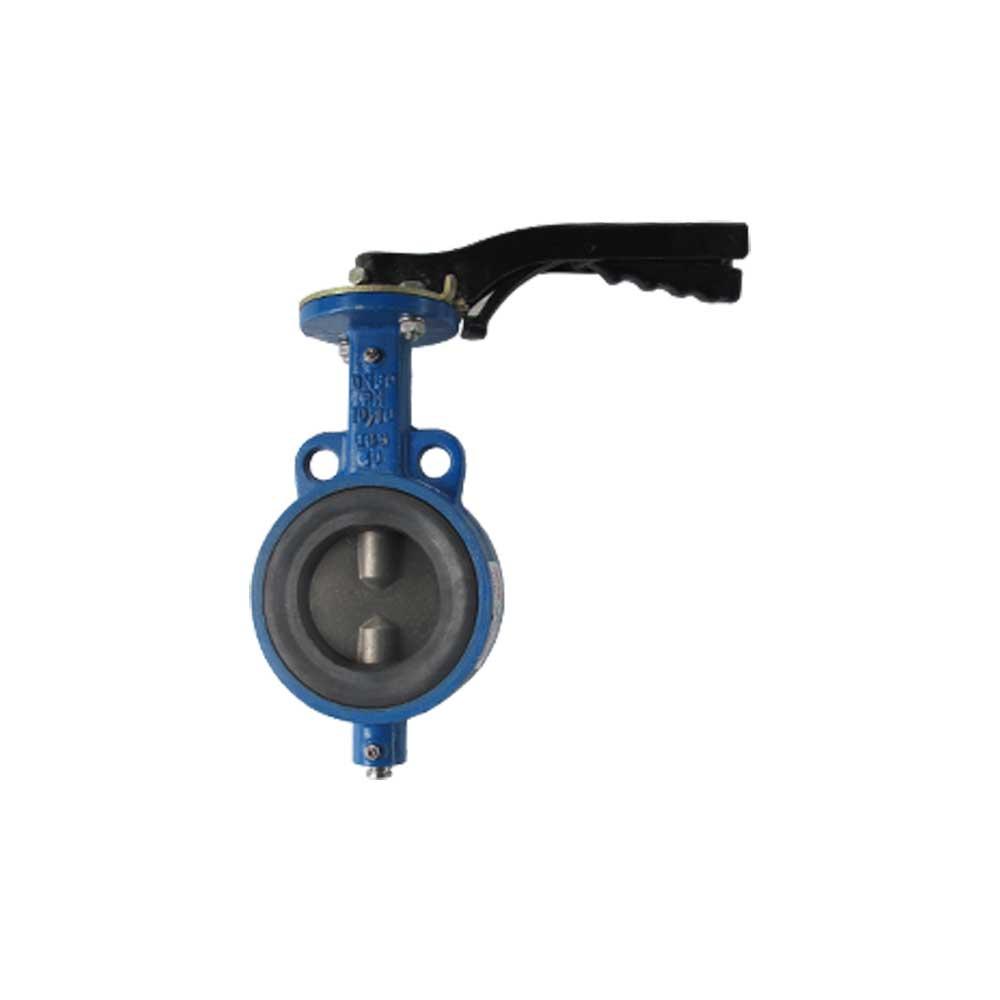

Butterfly Valve Wafer Type
Technical Specifications
- Size Range (DN): 50–200 mm
- Pressure Rating (PN): 6–16 bar
- Working Temperature: Up to 70°C
Applications
- Drinking water networks
- Raw water systems
- Non-corrosive fluids
- Wastewater networks (with EPDM/NBR seat)
Key Features
- Compact, lightweight design suitable for limited installation space
- Conforms to DIN EN 593 / DIN 3354
- Face-to-Face Dimension: DIN EN 558 Series 20
- Flange Compatibility: DIN 1092-2 / DIN 2501 / ANSI Class 150 (up to DN300)
- Sealing in both directions ensuring reliable operation
- Replaceable seat ring without removing valve from pipeline
- All wetted bolts and parts in stainless steel
- Actuator ready: manual, electric, or pneumatic
- Epoxy powder coating ≥ 250 µm, certified for potable water use
Advantages for Export Clients
- Ideal for small and medium-sized pipeline projects
- Lightweight, reducing shipping costs
- Easy to install in horizontal, vertical, or inclined positions
- Competitive pricing with guaranteed quality

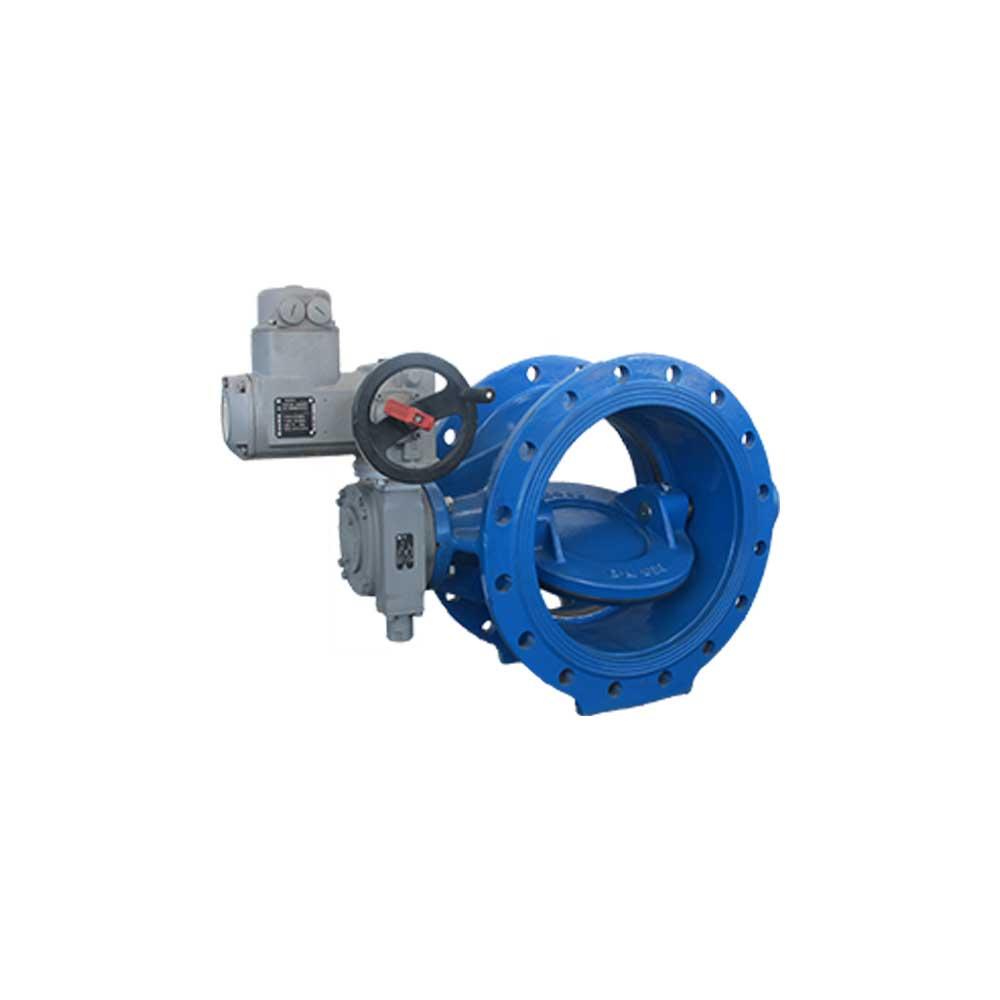

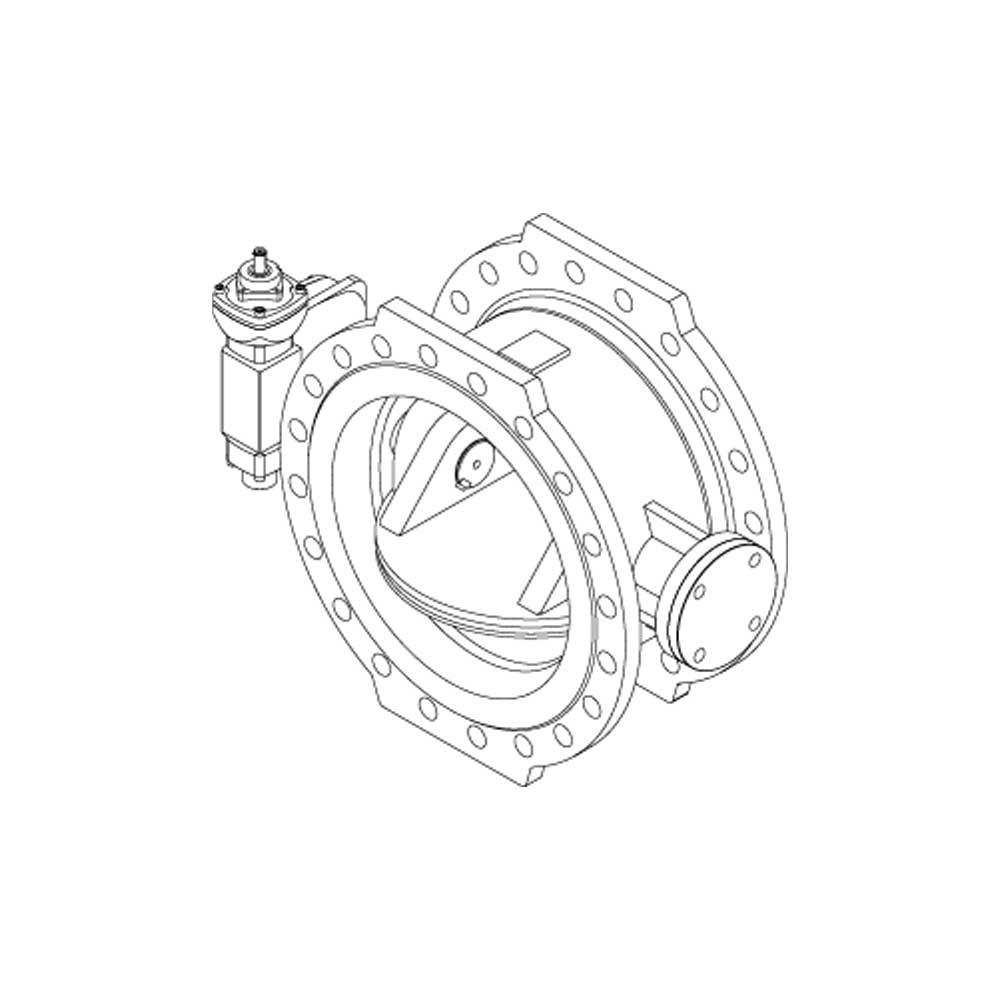

Butterfly Valve Double Flange Type
Technical Specifications
- Size Range (DN): 100–3000 mm
- Pressure Rating (PN): 6–40 bar
- Working Temperature: Up to 70°C
Applications
- Municipal water supply systems
- Irrigation and pumping stations
- Water treatment plants
- Industrial facilities requiring large-diameter valves
Key Features
- Heavy-duty ductile iron or steel body for high-pressure applications
- Conforms to DIN EN 593 / DIN 3354
- Face-to-Face Dimension: EN 558-1 Series 14 (DIN 3202-F4)
- Flange Compatibility: DIN 1092-2 / DIN 2501
- Bidirectional sealing with EPDM or NBR rings
- Replaceable rubber sealing for long service life
- Epoxy powder coating ≥ 250 µm with potable water approval
- Suitable for manual, electric, or pneumatic actuation
- Optional steel body and disk available upon request
Advantages for Export Clients
- Best suited for large-scale infrastructure projects
- Designed for high-pressure pipelines up to PN40
- Durable construction ensuring long-term reliability
- Spare parts available worldwide for after-sales support
Comparative Technical Analysis
| Specification | Butterfly Valve Wafer Type | Butterfly Valve Double Flange Type |
|---|---|---|
| Size Range (DN) | 50–200 mm | 100–3000 mm |
| Pressure (PN) | 6–16 bar | 6–40 bar |
| Working Temperature | ≤ 70°C | ≤ 70°C |
| Body Material | Ductile Iron (GJS400-15) | Ductile Iron / Steel (optional) |
| Disk Material | Stainless Steel 304 | Ductile Iron / Steel |
| Shaft Material | Stainless Steel 420 | Stainless Steel 1.4021 |
| Seat Material | EPDM / NBR | NBR / EPDM |
| Coating | Epoxy Powder ≥ 250 µm | Epoxy Powder ≥ 250 µm |
| Standards | DIN EN 593, DIN EN 558 S20 | DIN EN 593, EN 558-1 S14 |
| Installation | Horizontal / Vertical / Inclined | Horizontal / Vertical / Inclined |
| Sealing | Bidirectional | Bidirectional |
| Actuation Options | Manual / Electric / Pneumatic | Manual / Electric / Pneumatic |
| Best Application | Compact pipelines, small/medium systems | Municipal & industrial large-scale projects |
Export Advantages
- Competitive pricing with direct manufacturer supply
- Conformance to DIN, ISO, and ANSI standards for global markets
- Corrosion-resistant materials and epoxy coating for long service life
- Custom manufacturing with ductile iron or steel options
- Wide range of sizes from DN50 to DN3000
- Spare parts availability for continuous after-sales support
- Proven reliability in municipal, irrigation, and industrial projects
These butterfly valves are ideal for international distributors, government tenders, EPC contractors, and water infrastructure projects. Available for bulk orders with flexible delivery terms (FCA, CIF, CIP) and OEM branding options.
