Premium Gate Valves for Export – DN 50–600 mm, Reliable & Durable
- Gate Valves are engineered for reliable operation in water supply, industrial, and potable water systems, ensuring leak-proof sealing and long-term durability.
- We offer Soft Sealing (DN 50–600 mm | PN 10–25 bar) and Metal Sealing (DN 50–300 mm | PN 25–40 bar) types for on/off applications.
- Both valves minimize turbulence and pressure drop when fully open while providing complete sealing when closed.
- Manufactured from ductile iron with high-quality epoxy coating, they meet international DIN standards and are suitable for fluids up to 80°C.
- Ideal for municipal, industrial, irrigation, and non-corrosive fluid pipelines, these valves are maintenance-free, robust, and ready for global export.
$1.00 $1.00 / Pack
Special Shipping Offer
Reliable and efficient delivery
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Become a Vendor?Register now

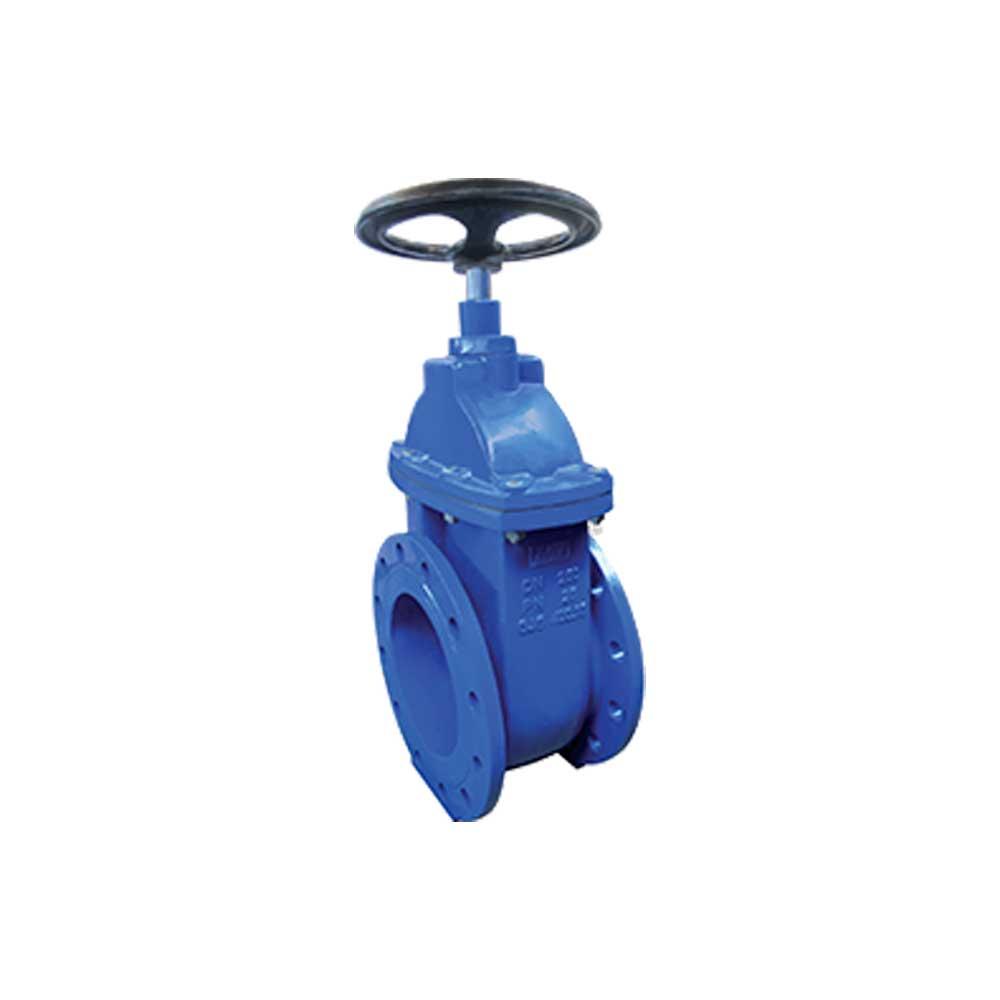

Premium Gate Valves for International Export – Soft & Metal Sealing
Gate Valves are designed for reliable and durable operation in water supply systems, industrial fluid networks, and potable water applications. Manufactured using high-quality materials and adhering to international standards, these valves ensure long-term performance, leak-proof sealing, and smooth operation under varying pressure conditions.
We offer two main types:
- Soft Sealing Gate Valves – DN: 50–600 mm | PN: 10–25 bar
- Metal Sealing Gate Valves – DN: 50–300 mm | PN: 25–40 bar
Both types are engineered to minimize turbulence and pressure drop when fully open, while providing complete sealing when closed. These valves are intended for on/off operations and should not be used as flow regulators.
Key Features
- Full sealing capability, preventing leakage in closed position
- Smooth operation with minimal effort
- Maintenance-free during operation
- High-quality epoxy powder coating (≥250 microns), certified safe for drinking water
- Bodies made of ductile iron (GJS 400-15), optional EN-GJS-500-7 (GGG50) for enhanced strength
- Manufactured according to DIN standards: EN 1092-2, EN 558-1 Serie 14, DIN 3352-Part 4, EN 12266-1
- Suitable for fluids up to 80°C
- Compatible with potable water, raw water, and non-corrosive fluids
Applications
- Urban and industrial water supply systems
- Drinking water pipelines and treatment plants
- Irrigation and raw water networks
- Industrial non-corrosive fluid pipelines
- Municipal water infrastructure
Advantages
- Minimal turbulence and low pressure drop when fully open
- Complete sealing capability on closure, preventing leaks
- Long-lasting durability with corrosion-resistant coating
- High reliability and performance in both soft and metal sealing types
- Flexible design options for specific project requirements
Material & Spare Parts
| Component | Soft Sealing Gate Valve | Metal Sealing Gate Valve | Material / Notes |
|---|---|---|---|
| Body | DN 50–600 | DN 50–300 | Ductile Iron (GJS 400-15), optional EN-GJS-500-7 (GGG50) |
| Wedge / Gate | EPDM or NBR | Ductile Iron with Bronze/Stainless Steel Seat Ring | Ensures proper sealing |
| Stem | Stainless Steel 1.4021 | Stainless Steel 1.4021 | High corrosion resistance |
| Stem Nut | 2.0540 (Cu Zn 35 Ni F 45) | 2.0540 (Cu Zn 35 Ni F 45) | Durable and reliable |
| Bonnet | Ductile Iron (GJS 400-15) | Ductile Iron (GJS 400-15) | Includes gasket |
| Gasket & O-Ring | NBR or EPDM | NBR or EPDM | Leak-proof sealing |
| Bolts & Nuts | Galvanized Steel | Galvanized Steel | Optional stainless steel for corrosion resistance |
| Hand Wheel | Ductile Iron | Gray Cast Iron (optional EN-GJS-500-7) | Easy manual operation |
| Seat Ring | N/A | Brass or Stainless Steel | Provides metal-to-metal sealing in metal type |
Technical Specifications
| Feature | Soft Sealing Gate Valve | Metal Sealing Gate Valve |
|---|---|---|
| Nominal Diameter (DN) | 50 – 600 mm | 50 – 300 mm |
| Pressure Rating (PN) | 10 – 25 bar | 25 – 40 bar |
| Max Operating Temperature | 80°C | 80°C |
| Design Standard | DIN 3352-Part 4 | DIN 3352-Part 4 |
| Flange Standard | DIN EN 1092-2 | DIN EN 1092-2 |
| Face-to-Face Dimension | EN 558-1 Serie 14 | EN 558-1 Serie 14 |
| End Connections | Flanged | Flanged |
| Testing | DIN EN 12266-1 | DIN EN 12266-1 |
| Valve Type | Soft Sealing | Metal Sealing |
| Applications | Water supply, non-corrosive fluids | Water supply, non-corrosive fluids |
| Flow Control | On/off only | On/off only |
Why Choose Our Gate Valves for Export
- Competitive pricing for bulk orders and international distribution
- High quality, fully compliant with international standards and certified for potable water use
- Durable and reliable, long service life with minimal maintenance
- Versatile applications suitable for municipal, industrial, and agricultural projects
- Customizable options for different sizes, materials, and sealing types
Export Readiness
Our Gate Valves are carefully packaged and ready for global shipping. Bulk orders are supported, and logistics for international export are streamlined to ensure timely delivery to any location worldwide.
Add your review
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
by Abrisham Road
Inspection group .co
Started from: Aug 02, 2025
Nahrab Gostar Tehran Company
From Germany
- Store rating
0
- Staff
> 10
- Offers
> 100
- Products
19
We offer Soft Sealing (DN 50–600 mm, PN 10–25 bar) and Metal Sealing (DN 50–300 mm, PN 25–40 bar) gate valves.
Ideal for water supply systems, potable water pipelines, irrigation networks, and industrial non-corrosive fluid pipelines.
Bodies are made from ductile iron (GJS 400-15), coated with epoxy powder ≥250 microns, meeting DIN standards (EN 1092-2, EN 558-1, DIN 3352-Part 4, EN 12266-1).
Yes, soft sealing valves handle 10–25 bar and metal sealing valves 25–40 bar, both up to 80°C.
